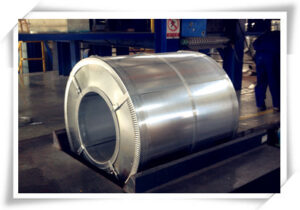

PPGL: It is a carbon steel material and the abbreviation of Prepainted Galvalume Steel.The main processing is pretreating, Painting,Baking. PPGL is mainly applied in steel construction industry and household appliances. We own our own PPGL factory and control the quality from Full-Hard CRC ( Original raw material) by ourselves. We export PPGL Coil and Sheet from Northeast of China to all over world.

FOB Price:	US $600 – 1000 /MT
Min.Order Quantity:	50 Metric Ton/Metric Tons
Supply Ability:	3000MT per Month
Port:	Tianjin/Qingdao/Shanghai/
Payment Terms:	L/C,T/T, Paypal

Packaging & Delivery

Packaging Details: Mill Standard exporting package.
(Inside:Anti-rust paper,Plastic,Outside:Steel inner and outside guard board,Circle Iron guard board for both side,Ouside iroan guard board, 3 Radial Strapping and 3 Latitude Strapping)
Delivery Detail: 40 days

Specification

• Grade: DX51D+AZ; SGCC
• Thickness: 0.2mm-0.8mm
• Width: 600-1250mm
• AZ coating weight: 30-275g/m2
• Painting premier: 5-7um/10-20um
• Coil ID: 508mm/610mm
• Coil Weight: according to the customer’s request
• Color: RAL, or other series
• Surface protection: PE, PVDF, SMP, HDP, etc.

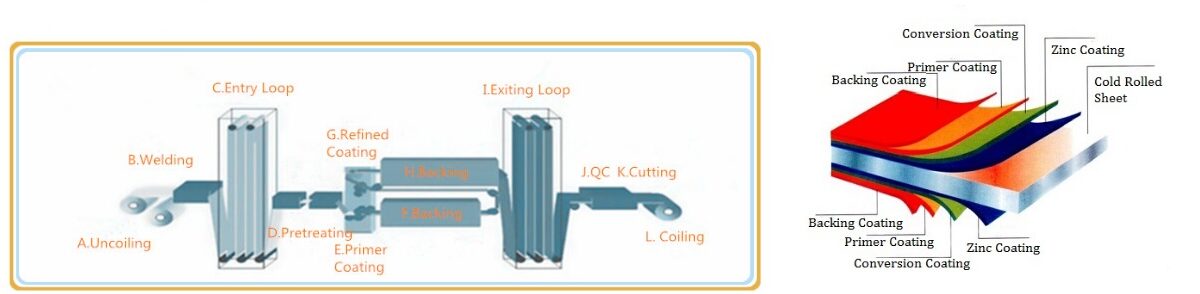

PPGL Processing Flow

Specification:

Technical Standard:	GB/ASTM
Grade:	CGLCC;DX51D+AZ
Type Base Metal:	Galvalume
AZ coating:	20g-275g/m2
Status of coating surface	Pre-painted sheet/Printed Sheet/Embossed Sheet/Filmed Sheet
Top Side/Back Side:	Two coating/One coating (2/1) Two coating/Two coating (2/2)
Finish Coating thickness:	10-25 um/5-7um 10-25um/10-15um
Type of finish Coating	Polyester/PE
Surface Finish	Gloss 15-90, or Matt surface.
Coil ID:	508 MM
Coil OD:	1000MM
Coil Weight:	8MT max
Egde:	Slit Edge/Mill Edge
Thickness basis:	All thickness after coating (including AZ Coating)/Base Metal Thickness
Weighting:	Delievery on the basis of acutal net weight
Package:	Mill Standard exporting package. (Inside:Anti-rust paper,Plastic,Outside:Steel inner and outside guard board,Circle Iron guard board for both side,Ouside iroan guard board, 3 Radial Strapping and 3 Latitude Strapping)
Packing Method:	Eye to wall/Eye to Sky;
Shipping Marks/Tags:	Mill’s Standard marks including commodity/standard/grade/net weight/coils’No./AZ Coating/Spangle,etc
Thickness (MM):	0.18-0.8
Width(MM):	600-1250
Color:	Ral/Customized
