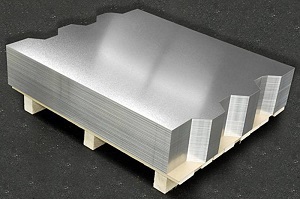

Tinplate1

Tinplate: It is a carbon steel material and made from Annealed Tin Mill Black Steel Plate. The main processing of Tinplate is tinning,which is the process of thinly coating sheets of wrought iron or steel with tin.It could be used for produce chemical can,aerosol can and different food can ,also battery,electric cable etc. We own our own tinning factory and control the quality from TMBP by ourselves. We export tinplate from Northeast of China to all over world.

FOB China Price: US $700– 900/ Metric Ton
Min.Order Quantity: 25 MT
Supply Ability: 3000MT per Month
Exporting Port: Tianjin Port, China (on google map)
Payment Terms: L/C,T/T,Paypal

Quick View

Standard:GB,JIS,DIN Grade:MR/SPCC Width:600-1250mm
Thickness:0.13-0.4mm Hardness:T1-T6/DR8 Place of Origin:Tianjin, China (Mainland)
Brand Name: GOBIC Type:Tinplate Coil/Sheet Application: Metal Package

MEET GOBIC – INQUIRY TINPLATE UPDATE PRICE FROM CHINA.

We know what you CONSIDER.Notice: We hate SPAM so much as YOU

EMAIL US TODAY

Packaging & Delivery

Packaging Details: PE Film-anti rust paper- plastic jacket- hardboard-metal jacket-wooden pallet- straps
Delivery Detail: 40 days

Specification

  • Standard: GB2520-88, JIS G3303-1997 and DIN EN10203-91
  • Grade: SPCC / MR
  • Thickness: 0.13mm to 0.40mm
  • Width: 600mm to 1250mm
  • Temper grade: T1 – T6 / DR8 BA and CA both
  • Tin coating: ordinary 2.8g/2.8g, 5.6g/5.6g, and Customizer
  • Coil diameter: ID 420/ 508mm
  • OD :1,000 to 1,250mm
  • Package: Anti-rust paper,corner protected. by sheet or coils according customer’s require.
  • End Usage: metal package usage like paint, chemical can,aerosol can and different food can production,Also battery,electric cable and other industries

End Usage

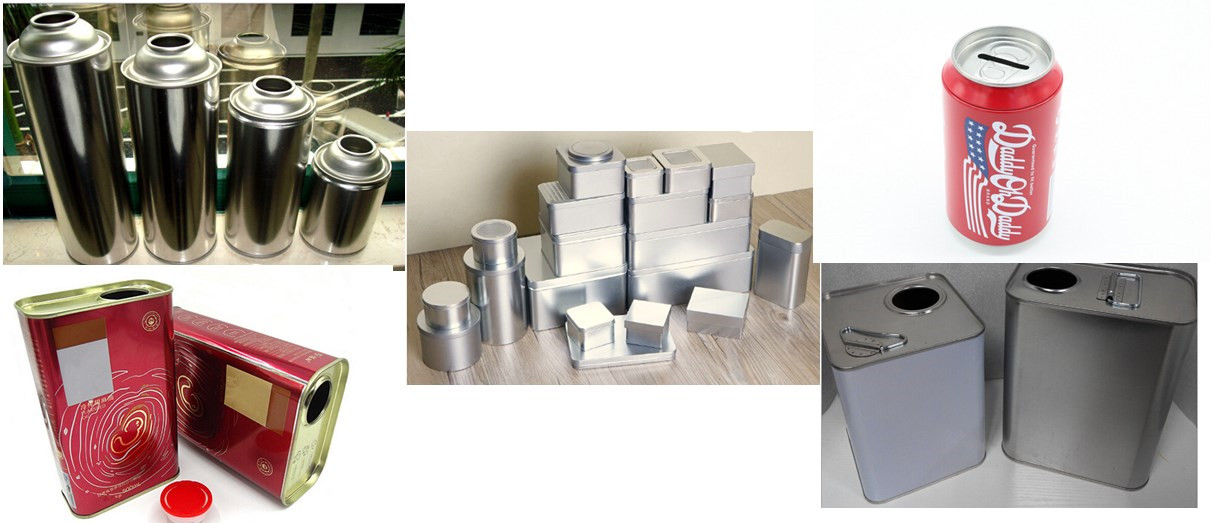

Metal package included: Beverage Can,Oil Can,Chemical Can,Aerosol Can, and different Food can/Gift Can.

tinplate can

Tin Coating Weight

Type Designation of tin coating weight Min.average tin coating weight(g/m2)
Equal tin coating 1.4/1.4 1.2/1.2
2.2/2.2 2.0/2.0
2.8/2.8 2.45/2.45
5.6/5.6 5.05/5.05
8.4/8.4 7.55/7.55
11.2/11.2 10.1/10.1
Differentially Coating 1.4/2.8 1.2/2.45
2.2/2.8 2.2/2.45
2.8/5.6 2.45/5.05
2.8/8.4 2.45/7.55
2.8/11.2 2.45/10.1
5.6/8.4 5.05/7.55
5.6/11.2 5.05/10.1
8.4/11.2 7.55/10.1

Temper Type

Temper Designation JIS JIS Rockwell
Hardness 30T
T1 SPB-T1 49 +/-5
T2 SPB-T2 53 +/-5
T2 1/2 SPB-T2 1/2 55 +/-5
T3 SPB-T3 57 +/-5
T4 SPB-T4 61+/-5
T5 SPB-T5 65+/-5
DR8 SPB-DR8 73 +/-5
DR9 SPB-DR9 76 +/-5
DR9M SPB-DR9M 77 +/-5
DR10 SPB-DR10 80 +/-5

Surface Finish

Surface Finish Features
Bright Both smooth finish and lustrous smooth finish are availabie.
Stone Surface finish with a directional grindstone-pattern.
Matte Both satin finish and blasted finish are available.
